Name: Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K * 2
Price: 375,005.00 USD
Availability: InStock

Maison > Produits > Poste à souder IBC >

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Fully Automatic IBC Tube Pressing and Forming Machine

Hydraulic Pressing IBC Frame Tube Forming Machine

Pipe End Shrinking IBC Tube Forming Equipment

Lieu d'origine:

Chine

Nom de marque:

HWASHI

Certification:

Numéro de modèle:

WL-SQ-150K * 2

Contactez-nous

Demandez une citation

Détails de produit

Nom du produit:

Machine automatique de pressage et de formage de tubes longs Hwahsi pour la ligne de production de c

système de contrôle:

API

Emballage:

emballage en bois

Spécification:

CCC

Garantie:

1 an

Source d'alimentation de soudage:

AC / MF DC

Conditions de paiement et d'expédition

Quantité de commande min

1 ensemble

Prix

Négociable

Détails d'emballage

Ensemble en bois en mer ou film PVC pour FCL

Délai de livraison

30 - 45 jours ouvrables après avoir reçu votre paiement

Conditions de paiement

LC, T/T

Capacité d'approvisionnement

50 ensembles par mois

Produits connexes

Vidéo

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Obtenez le meilleur prix

Vidéo

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

Obtenez le meilleur prix

Vidéo

Ligne de production de châssis de cage IBC entièrement automatique avec test d'étanchéité et efficacité de soudure de 50 secondes/pièce

Obtenez le meilleur prix

Vidéo

Machine de production automatique de cages IBC avec un temps de cycle de 60 secondes par cage, certifiée ISO9001 et pesant 2000 kg

Obtenez le meilleur prix

Contactez-nous

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact maintenant

Description de produit

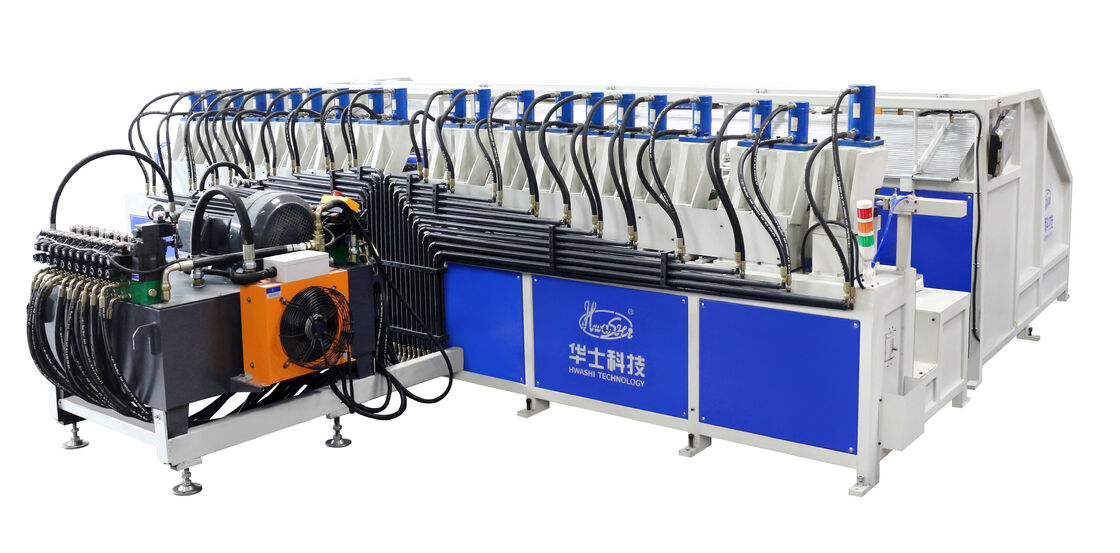

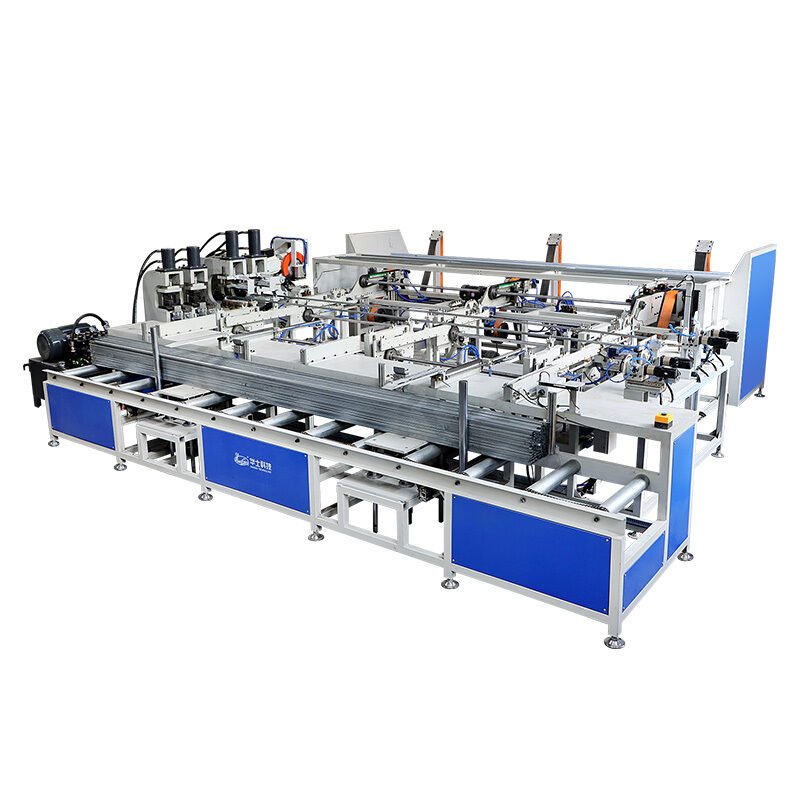

Hwahsi Automatic Long Tube Pressing And Forming Machine For IBC Stainless Steel Frame

The Hwahsi Automatic Long Tube Pressing and Forming Machine is a specialized custom solution designed for IBC tube processing in stainless steel frame manufacturing production lines. This advanced equipment enables fully automated pipe feeding, pipe end shrinking, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features & Benefits

Fully Automatic Operation: Seamless automated processing eliminates the need for human intervention
Pipe End Shrinking Capability: Ensures precision and consistency in IBC tube shaping to meet quality standards
Efficient Hydraulic Pressing: Advanced hydraulic system enhances tube formation efficiency and final product quality
Automatic Unloading: Integrated unloading process streamlines production workflow and minimizes downtime
Manpower Savings: Eliminates operator requirements, significantly reducing labor costs
Production Rate Enhancement: Advanced automation delivers substantial increases in production output within shorter timeframes

Operation Process

Finished Product

Processing Workflow:

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station. The mechanical arm picks up two pipes simultaneously and positions them for hydraulic pressing and tube end shrinking. After pressing completion, finished tubes are automatically unloaded onto the conveyor system, which transfers the final materials into the collection trolley.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic
Pressing Mark Number	20
Cutting Function	Yes
Each Time Processing Number	2 pieces
Efficiency	12-15 seconds per 2 pieces

Advanced Manufacturing Solution: The IBC Long Tube Automatic Pressing and Forming Machine represents cutting-edge technology in IBC tube processing, providing manufacturers with a reliable, high-speed, and labor-saving solution to optimize production capabilities and enhance operational efficiency.
