Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Place of Origin:

China

Nom de marque:

hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-SQ100K

Contactez-nous

Demandez une citation

Détails de produit

Model:

WL-SQ100K

Conductive Way:

Both-Sided

Rated Capacity:

160kVA X2

Applicable Material:

Stainless Steel, Carbon steel, Aluminum, Metal

Welding Method:

Resistance Touch Welding

Max.Welding Thickness:

2+2mm

Warranty:

1 years

Conditions de paiement et d'expédition

Minimum Order Quantity

1 set

Prix

Négociable

Packaging Details

sea worthy wooden package

Delivery Time

60 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Produits connexes

Vidéo

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Obtenez le meilleur prix

Vidéo

Équipement de pliage de bras rocker en acier inoxydable de bonne qualité

Obtenez le meilleur prix

Vidéo

Résistance Multipoint Rocker Arm Table Plateforme de bureau sans soudure Plateforme de soudage par points pour armoire de distribution de métal

Obtenez le meilleur prix

Vidéo

HWASHI bras à manivelle flexible plaque métallique panneau de porte de type C bras à manivelle Plaque de table de soudage de machine Plaque de soudage de plaque métallique

Obtenez le meilleur prix

Contactez-nous

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact maintenant

Description de produit

HWASHI Door Panel Multi Head Spot Welding Machine

Name: Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ100K
Price: 25.00 USD
Availability: InStock

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder 0

Product Description
CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel, we suggest to choose the MF DC power due to the long distance welding. Lower electrode adopts full flat locating method, moving along with the Y-axis direction; The left and right side of platform has been equipped with one electrode respectively, and it will move along with the X-axis; Each welding head is equipped with one set of welding power source arranged in a straight line. After loading the work piece, start welding. The platform moves along with the Y-axis direction to the welding position as per preset position program. Then the welding heads move from both sides toward middle and weld this row. After welding this row, moves in Y-axis direction to another row. In the meantime, both sides of the platform work circularly until complete the welding.

CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel can complete loading and fixing the work piece at one time; It can automatically move and weld as per preset location; Electrodes can automatically enter grinding system to repair and maintain the electrodes; It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost. It solves the unstable quality and low production efficiency defect caused by manual job; The maximum flat table size is 1500 x1500mm.(customized)

Working Process
* Manually put the workpiece onto the table;
* Press the start button, then the machine will conduct welding automatically for one line of spots;
* After welding one line, then manually move the product to another line. Then press the start button again.
* Cycle working

Advantages
* Refined welding
* No need for special equipment
* Multi head welding at the same time
* Maximally easy working area access
* Production flexibility
* Reduced labor costs

Product Features

1. Flexible using: you can adjust the welding head distance as per your drawing request. Only need to loose the bolts on the cylinder then you can move the cylinder from left to right.

2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.

3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.

4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.

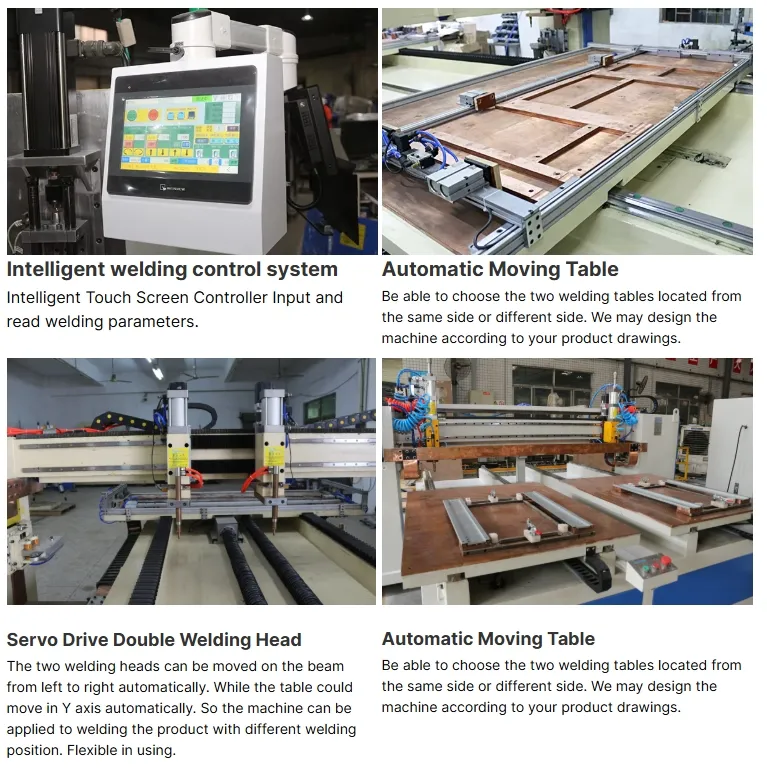

Automatic Moving Table

Be able to choose the two welding tables located from the same side or different side. We may design the machine according to your product drawings.

S.N	Items	WL-AT-MF 15
1	Input Voltage	380v,3-Phase
2	Input Power	160KVAx2
3	Max.Welding Current	32000 Ax2
4	Welding Specification	32 Kinds
5	Different Welding Current	5000
6	Effective Size Of Welding Platform	1500mmx1500mm
7	X Axis Effective Width	750 mm
8	Y Axis Effective Length	1500 mm
9	X Axis Servo Motor	2 Sets
10	Y Axis Servo Motor	2 Sets
11	Feeder Moving Speed	800 mm/sec
12	Servo Motor Power	450 W
13	Welding Cylinder	2 NO.(80x50mm)
14	Upper Welding Electrode	2 Sets
15	Lower Electrode	full flat table
